Heavy-Duty IBC Tank Lids: 150mm & 245mm Vented Top Closures
In bulk chemical containment, pharmaceutical solvent storage, and food ingredient logistics, the top opening of a 1,000-liter (275-gallon) Intermediate Bulk Container (IBC) is subjected to thermal expansion, vapor pressure buildup, and aggressive environmental exposure. An ill-fitted or degraded IBC tank lid leads to dangerous tank sidewall deformation, liquid contamination, and transit spills. Qiming Packaging manufactures injection-molded, chemical-resistant high-density polyethylene (HDPE) IBC tank lids engineered for standard 150 mm (6-inch) and 245 mm (9-inch) collar openings, equipped with automatic two-way venting valves and food-contact elastomeric gaskets.
⚡ Rapid Size & Collar Identification Rule
- Standard 150mm (6-inch) Collar: Outer thread collar diameter of approximately 162 mm to 165 mm with a 7 mm thread pitch. Fits over 85% of Schutz, Greif, Werit, and Mauser composite IBC bottle necks.
- Heavy-Duty 245mm (9-inch) Collar: Outer thread collar diameter of approximately 245 mm to 250 mm, providing wide top access for bulk powder dissolution, top-mounted agitators, or high-viscosity food syrups.
- Center Port Integration: Precision molded 2" buttress or fine-thread center port accommodating solid plugs, breathable micro-porous membrane vents, or pressure-relief valves.
1. Technical Dimension & Model Specification Matrix
Review our standard factory configurations available in chemical-grade Black, high-visibility Red, or customized OEM pantones:

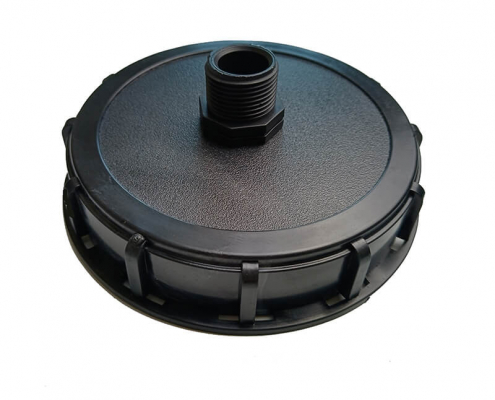

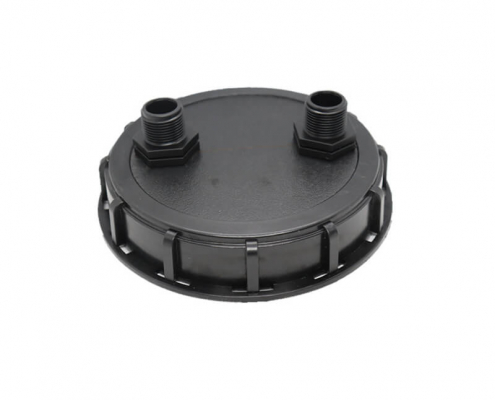

| Model Code | Nominal Collar Size | Collar Outer Diameter (OD) | Center Bung / Port | Breathing Vent Type | Standard Gasket |
|---|---|---|---|---|---|
| QM-LID-150-S | 150 mm (6 Inch) | 163 mm ± 1 mm | Solid Center (No Bung) | Non-Vented (Hermetic Seal) | EPDM / Solid Silicone |
| QM-LID-150-V1 | 150 mm (6 Inch) | 163 mm ± 1 mm | Single 2" Buttress Port | Two-Way Automatic Micro-Vent | EPDM / Natural Rubber |
| QM-LID-150-V2 | 150 mm (6 Inch) | 163 mm ± 1 mm | Dual 2" Ports (Double Bung) | Vented Plug + Dip Tube Access | EPDM / Viton (FKM) |
| QM-LID-245-V1 | 245 mm (9 Inch) | 255 mm ± 2 mm | Single 2" Center Plug | High-Flow Pressure Release Vent | Food-Grade Silicone / EPDM |
| QM-LID-245-S | 245 mm (9 Inch) | 255 mm ± 2 mm | Solid Heavy Dome | Non-Vented Flat Cap | Chemical-Resistant EPDM |
2. Visual Showcase: 150mm & 245mm Dimensional Measurement
Confirm your required IBC tote collar dimension using caliper and tape measurements before ordering replacement fleets:

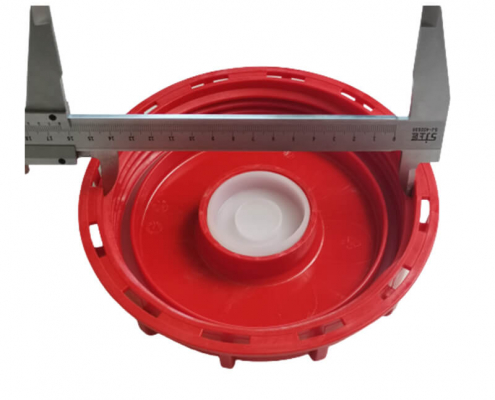

Figure 1: 150mm (6-Inch) Collar Thread Measurement (~163mm Outer Diameter)

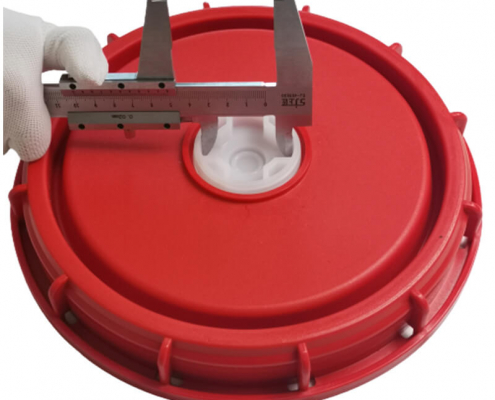

Figure 2: 245mm (9-Inch) Wide Mouth Collar Measurement (~255mm Outer Diameter)
3. Production Engineering Showcase: Color Variants & Internal Sealing

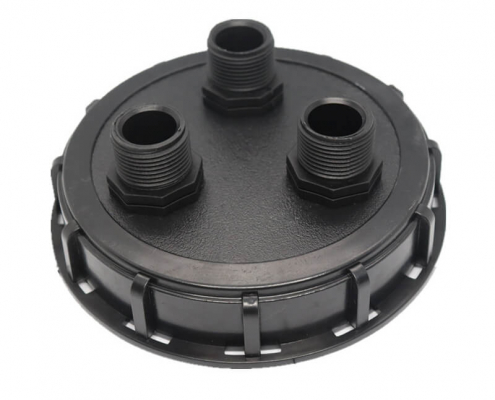

Examine the molded details, internal gasket retention grooves, and center bung configurations:

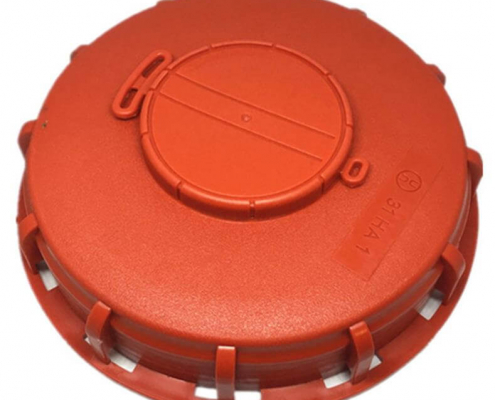

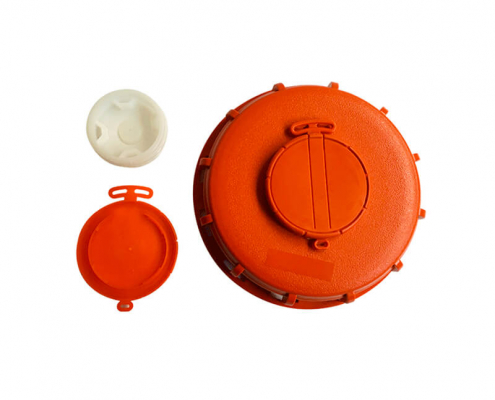

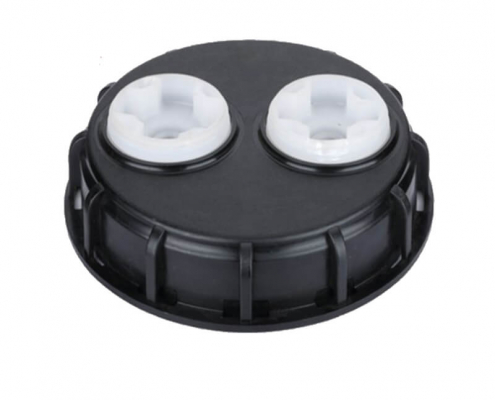

Figure 3: 150mm Lids in Chemical Black and Safety Red

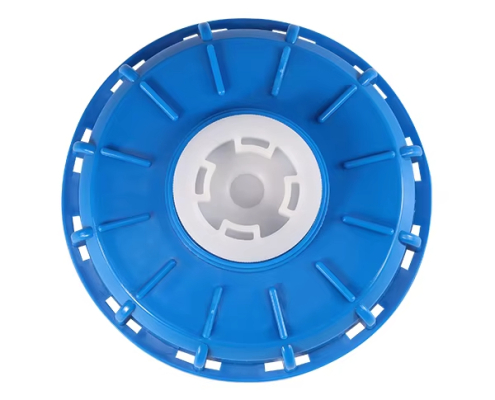

Figure 4: Heavy-Duty Internal Buttress Threads & Gasket Seat

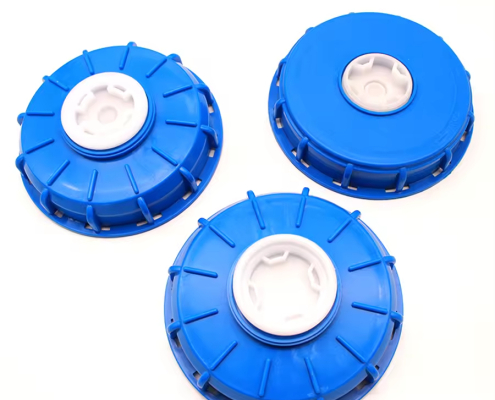

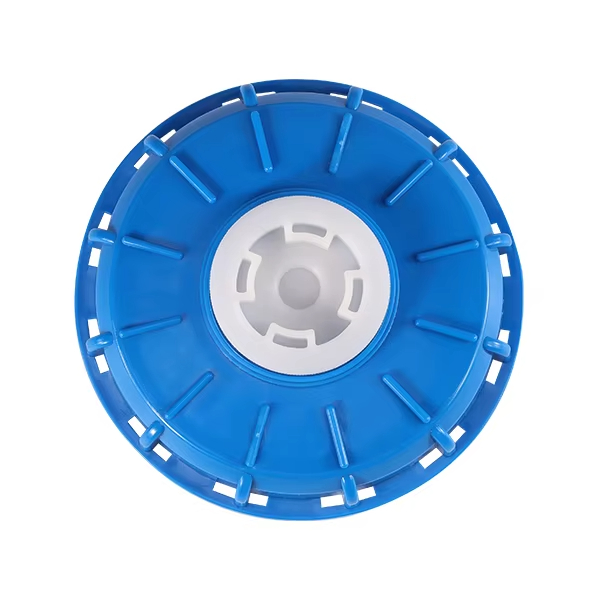

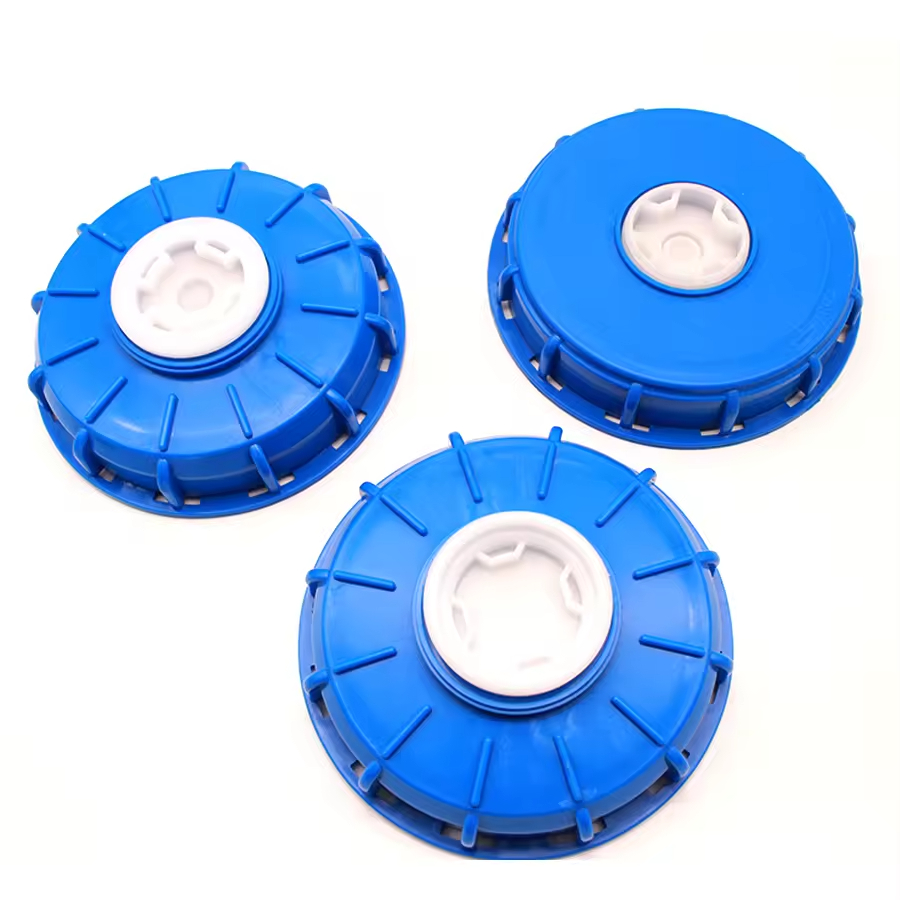

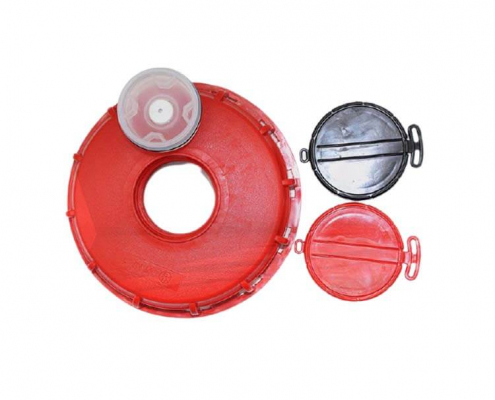

Figure 5: Precision Elastomeric Gasket Seal & 2" Vented Center Plugs
4. Why Pressure Equalization Matters: The Science of Vented Plugs
IBC tanks transported across varying altitudes or loaded with off-gassing chemistries (such as sodium hypochlorite, hydrogen peroxide, or organic fertilizers) encounter continuous interior pressure shifts:
- Negative Pressure (Vacuum Inward Collapse): When liquid temperature drops at night, internal headspace volume shrinks. A non-vented lid causes the thin HDPE bottle walls to buckle inward ("panelling"), permanently weakening stack integrity.
- Positive Pressure (Expansion & Rupture): Vapor-emitting chemicals increase internal hydrostatic pressure under direct summer sunlight. Without a pressure-relief membrane, high pressure risks popping lower drain valves or causing violent spray when opened.
- Our Engineered Solution: Qiming's microporous breathable membrane vents allow continuous bi-directional gas exchange while remaining 100% liquid-tight against aggressive wash-out.
5. Gasket Elastomer Selection: Chemical Resistance Chart
| Elastomer Material | Operating Temperature | Primary Media Compatibility | Application Recommendation |
|---|---|---|---|
| EPDM (Standard Fitted) | -40°C to +125°C | Alkalis, mild acids, water-based coatings, glycol | Standard industrial fluid containment |
| Food-Grade Silicone | -50°C to +200°C | Potable water, edible syrups, juices, dairy, pharmaceuticals | FDA 21 CFR 177.2600 compliant food lines |
| Viton / FKM | -20°C to +200°C | Concentrated inorganic acids, aromatic hydrocarbons, fuels | Aggressive industrial chemical containment |
| Natural Rubber | -30°C to +80°C | General construction slurry, non-corrosive liquids | Economical general-purpose sealing |
6. Step-by-Step Guide: Inspecting & Replacing Your IBC Tank Lid
- Depressurize Tank: Before unthreading, gently loosen the center 2" plug (if equipped) to release any trapped headspace pressure safely away from personnel.
- Inspect Tank Neck Flange: Wipe clean the bottle's threaded mouth. Remove dirt, crystallized chemical deposits, or plastic burrs along the top sealing rim.
- Check Gasket Seating: Ensure the EPDM or silicone O-ring gasket is firmly nestled inside the lid's circumferential retaining groove without twists or pinching.
- Screw Down Squarely: Align the lid squarely with the collar threads. Rotate clockwise by hand until snug. For UN-rated hazmat transit, apply recommended torque (typically 70–90 N·m) using a standard IBC lid wrench.
7. Frequently Asked Questions (IBC Tank Lids)
How do I know if my IBC tank needs a 150mm or 245mm lid?
Will Qiming IBC lids fit Schutz, Mauser, and Greif tanks?

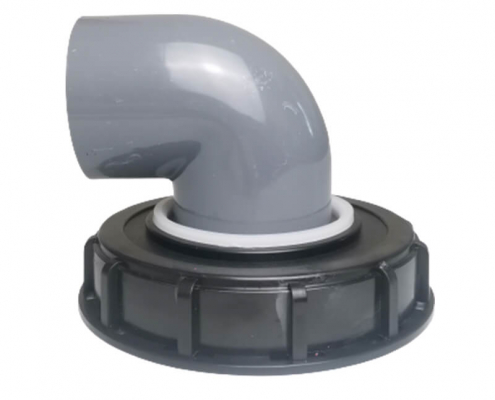

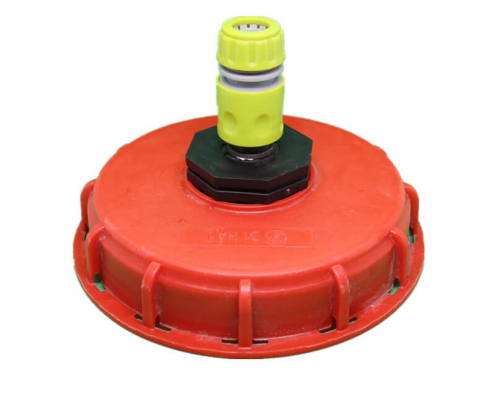

Can I insert a mixer or suction tube through the lid?
Are Qiming Packaging IBC lids food grade?
Request Bulk Fitting Quotes & Complimentary Compatibility Samples
Eliminate transit leakage and vapor panelling across your container fleet. Qiming Packaging maintains extensive container inventories of 150mm and 245mm IBC lids ready for immediate dispatch and full container consolidation.
Request Free IBC Lid Samples & Factory Price List →8. Complete Your Bulk Container Infrastructure
A secure top closure works hand-in-hand with downstream drainage. Explore our precision IBC Tank Valves and versatile IBC Tote Adapter Connectors to build an integrated, leak-proof fluid transfer system.
