Push-In Flange Protectors

Pipe flange refers to the flange used for piping in the pipeline installation and refers to the inlet and outlet flange of the equipment used in the equipment. There are holes in the flange, and the bolts tightly connect the two flanges. The flanges are sealed with gaskets.

The flange is divided into threaded connection (thread connection) flange, welding flange, and clip flange. Flanges are used in pairs, low-pressure pipes can use wire flanges, welding flanges for pressures above 4 kg. Add a gasket between the two flanges, and then tighten with bolts. Flanges of different pressures have different thicknesses, and they use different bolts.

push in flange protectors
push in flange protectors

To extend the service life of the flange, the daily maintenance of the flange is very important.

The Push-In Flange Protectors can protect the outside of the flange and play a role in preventing oxidation and corrosion.

In addition, the Push-In Flange Protectors have a strong dustproof effect, which not only extends the service life of the flange but also keeps the flange surface shiny.

push in flange protectors

Let’s introduce some popular flange end caps for your reference:

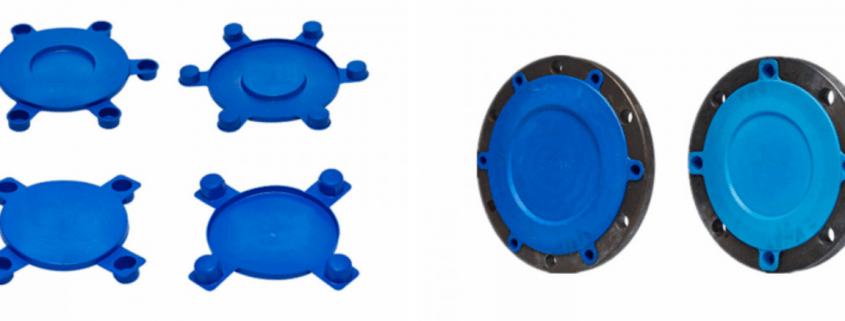

1. ANSI Stud Hole Flange Protector

valve flange protectors

Suitable for ASA/ANSI/BS1560 flanges. Quick fitting. Simply insert plugs into the bolt holes. Will not tear or crack.Weather and petroleum resistant.

Size:1/2″ to 30″ Pressure:150LB to 2500LB

Material: LDPE, low-density polyethylene

Standard Color: Blue

Custom-made: Resistant to temperatures from -50 degrees C to +60 degrees C.UV-stabilised

Raised Face Flange Protectors

2. ANSI Outside flange protector

valve flange protectors

Pushs on to cover the entire flange and protect the face and sides.Ideal for coated and conical bore flanges.

Size:1/2″ to 24″

Material: LDPE, low-density polyethylene Pressure:150LB to 2500LB

Standard Color: Blue

Custom-made: Resistant to temperatures from -50 degrees C to +60 degrees C.UV-stabilised

3. Valve Flange Face Protection Plugs

raised face flange protectors

Provides cushioned protection for flange face

Size:1/2″ to 40″

Material: LDPE, low-density polyethylene

Standard Color: Blue

If you would like to know more about our food tin cans, you could also contact us by email or calling us to know more. (info@qiminggroup.com)

Qiming Packaging Pace Your More Safety Life!
